Home > Product > Communication Modules > XY5301 Module

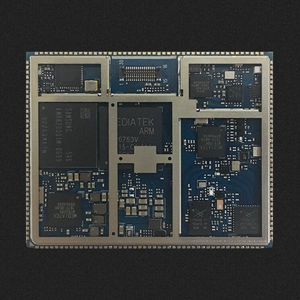

    XY5301 Module

    • No.:
    • Brand :
    • Weight:

    ?XY5301 Module is a LTE module based on Mediatek MT6753 platform, ?the module intergrated Application Processor and LTE modem, run on Android 5.1 operation system. it can be second developed

    1. Detailed information

     XY5301 Module is a LTE module based on Mediatek MT6753 platform,  the module intergrated Application Processor and LTE modem, run on Android 5.1 operation system. it can be second developed on the Application Processor and Android System, There are many peripheral interfaces you can use to connect and control other devices, like I2C, SPI, UART, USB OTG, GPIO, INT etc. the module is powerful and  cost-effective,  it has good expandability and flexibility in design, can meet various demands on products. It can be widely used on Consumer Electronics and Industry Equipment etc. When there are a demand of nearby or remote communication, smarter device, Android system, You can choose to use our Core Board.



    Main Characteristic

    n   OS

             Android 5.1 (64bit)



    n   CPU

             Octa-Core ARM Cortex-A53 up to 1.3Ghz

             512KB unified L2 cache



    n   ROM & RAM

             8GB eMMC + 8Gb LPDDR3optional 16GB+16Gb32GB+16Gb



    n   Connectivity

             WIFI: Support 802.11 a/b/g/n

             FM: FM Receiver

             Bluetooth: BT 4.0

             GPS: GPS/Beidou/Galileo/Glonass

     A-GPS: Support



    n   Band Support

             TDD_LTE: Band38/39/40/41(2555~2655MHz)

             FDD_LTE: Band3/1

             WCDMA: Band1/8

             TDSCDMA: Band34/39

             GSM/GPRS/EDGE: Band3/8

             GPRS/EDGE Class 12

             CDMA2000EVDO 800



    n   User interface

             DisplayUp to Full HD 1080P (1080x1920)

             Touch PanelCaptive Touch Panel

             Front Camera13MP

             Rear Camera13MP









    Product Spec.



    n  Main Board designCore board & Mother board.

    n  Supply Voltage3.6V~4.5V

    n  dimension40mm * 50mm *2.8mm

    n  Package: 168 pin LCC

    n  Operation Temperature-20°+70°Centigrade

    n  Four Antenna interfaceWIFI/BT,  GPS,  LTE Main,  LTE Diversity Rx



    Peripheral Interface



    n  1x SDIO2.0

    n  1x SPI

    n  2x SIM Card

    n  4x UART

    n  4x I2C

    n  Audio2x MIC input, 1x Speaker output, 1x Receiver output, 1x Earphone output.

    n  1x USB OTG

    n  3*3 matrix keyboard interface.

    n  Multiple external interrupt input.



    Application Scenarios



    n   Handheld POS machine

    n   Mobile Data Terminal Equipment

    n   Industry Control

    n   Vehicle Navigator
